JumpServer是全球首款完全開源的堡壘機，采用Python和Django進行開發，滿足4A規范，遵循GNU GPL v2.0開源協議，是一款專業的運維審計系統。站長百科下文主要解讀JumpServer及安裝使用方法。
一、堡壘機是什么
根據百度百科介紹，堡壘機是在一個特定的網絡環境下，為了保障網絡和數據不受入侵和破壞，運用各種技術手段監控對網絡內的服務器、網絡設備、安全設備、數據庫等設備的操作行為，以便于集中報警、及時處理及審計定責。
其從功能上講，它綜合了核心系統運維和安全審計管控兩大主干功能，從技術實現上講，通過切斷終端計算機對網絡和服務器資源的直接訪問，而采用協議代理的方式，接管了終端計算機對網絡和服務器的訪問。形象地說，終端計算機對目標的訪問，均需要經過運維安全審計的翻譯。打一個比方，運維安全審計扮演著看門者的工作，所有對網絡設備和服務器的請求都要從這扇大門經過。因此運維安全審計能夠攔截非法訪問和惡意攻擊，對不合法命令進行命令阻斷，過濾掉所有對目標設備的非法訪問行為，并對內部人員誤操作和非法操作進行審計監控，以便事后責任追蹤。
二、JumpServer簡介
JumpServer是一個開源的特權訪問管理 （PAM） 工具，能夠通過網頁瀏覽器為DevOps和IT團隊提供按需和安全的SSH、RDP、Kubernetes、數據庫和遠程應用程序端點訪問。

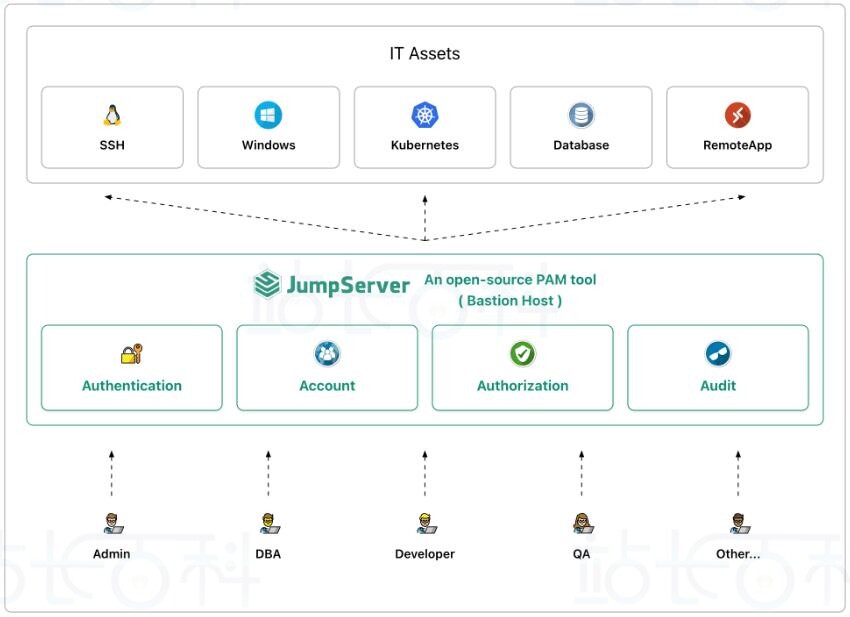

1、JumpServer工作流程如下圖：

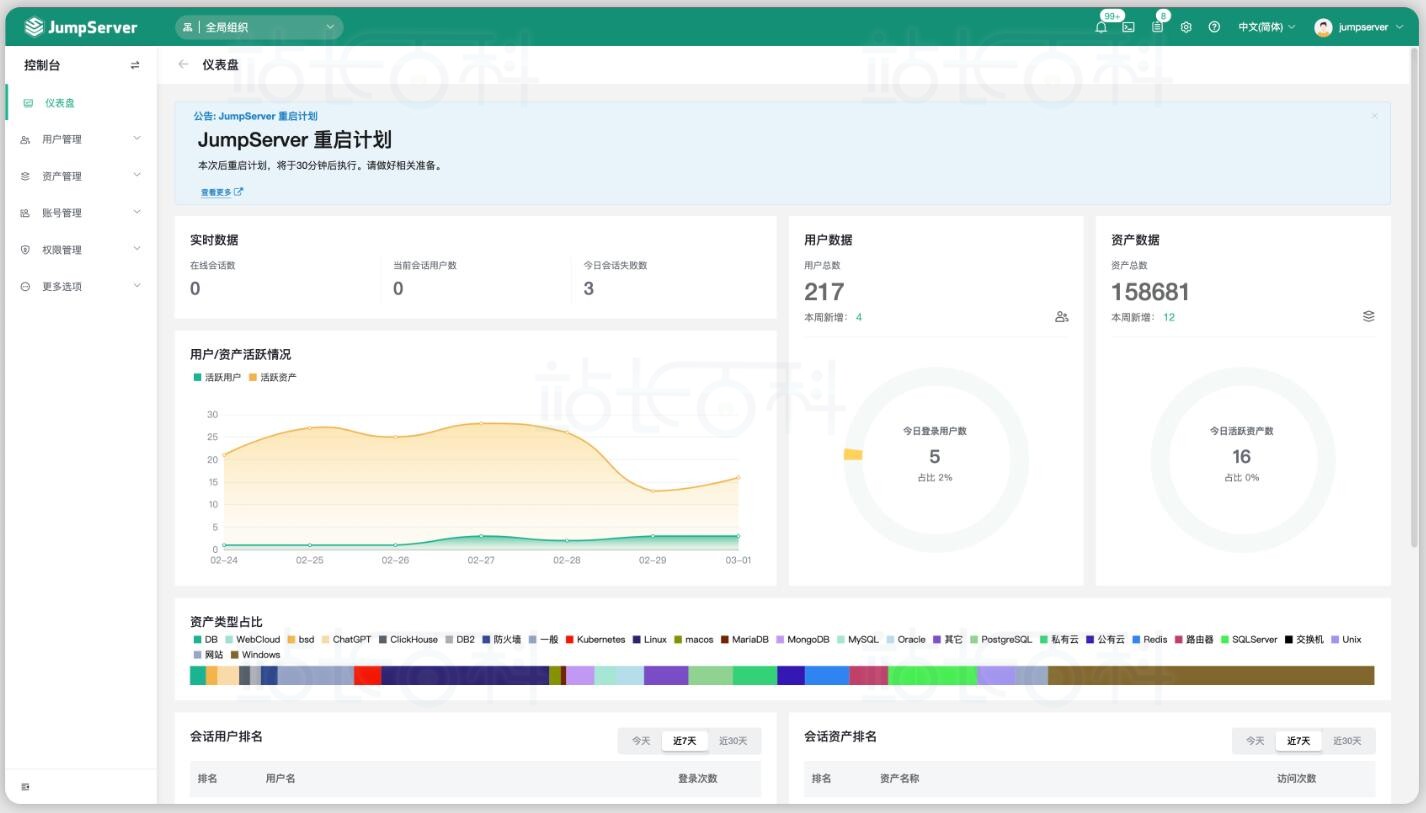

2、JumpServer堡壘機展示圖
3、JumpServer堡壘機支持的資產類型包括：
- SSH (Linux / Unix / 網絡設備 等)
- Windows (Web 方式連接 / 原生 RDP 連接)
- 數據庫 (MySQL / MariaDB / Oracle / SQLServer / PostgreSQL / ClickHouse 等)
- NoSQL (Redis / MongoDB 等)
- 云服務 (Kubernetes / VMware vSphere 等)
- Web 站點 (各類系統的 Web 管理后臺)
- 應用 (通過 Remote App 連接各類應用)
4、JumpServer優勢
- 開源：零門檻，線上快速獲取和安裝；
- 分布式：輕松支持大規模并發訪問；
- 無插件：僅需瀏覽器，極致的 Web Terminal 使用體驗；
- 多云支持：一套系統，同時管理不同云上面的資產；
- 云端存儲：審計錄像云端存儲，永不丟失；
- 多租戶：一套系統，多個子公司和部門同時使用；
- 多應用支持：數據庫，Windows 遠程應用，Kubernetes。
三、JumpServer堡壘機安裝教程（離線安裝/在線安裝）
1、操作系統要求

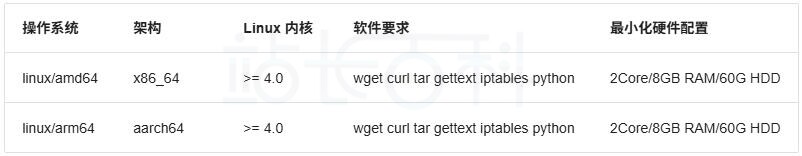

（1）操作系統
支持主流 Linux 發行版本（基于 Debian / RedHat，包括國產操作系統）；Gentoo / Arch Linux 請通過源碼安裝。
Debian / Ubuntu：
apt-get update
apt-get install -y wget curl tar gettext iptables
RedHat / CentOS：
yum update
yum install -y wget curl tar gettext iptables
（2）數據庫

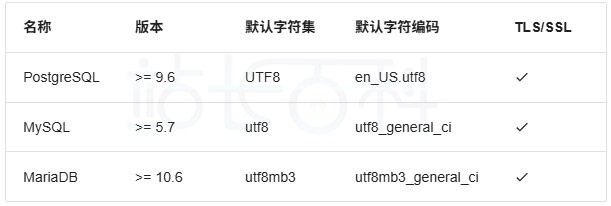

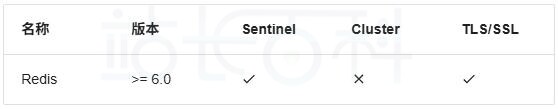

JumpServer堡壘機需要使用 PostgreSQL、MySQL 或 MariaDB 存儲數據，使用 Redis 緩存數據。
創建數據庫SQL參考：
PostgreSQL：
create database JumpServer with encoding=’UTF8′;
postgres=# \l
List of databases
Name | Owner | Encoding | Locale Provider | Collate | Ctype | ICU Locale | ICU Rules | Access privileges
————–+————+———-+—————–+————+————+————+———–+———————–
JumpServer | postgres | UTF8 | libc | en_US.utf8 | en_US.utf8 | | |
(1 rows)
MySQL：
create database JumpServer default charset ‘utf8’;
mysql> show create database JumpServer;
+————+———————————————————————+
| Database | Create Database |
+————+———————————————————————+
| JumpServer | CREATE DATABASE `JumpServer` /*!40100 DEFAULT CHARACTER SET utf8 */ |
+————+———————————————————————+
1 row in set (0.00 sec)
MariaDB：
create database JumpServer default charset ‘utf8’;
MariaDB> show create database JumpServer;
+————+———————————————————————–+
| Database | Create Database |
+————+———————————————————————–+
| JumpServer | CREATE DATABASE `JumpServer` /*!40100 DEFAULT CHARACTER SET utf8mb3*/ |
+————+———————————————————————–+
1 row in set (0.001 sec)
2、離線安裝JumpServer堡壘機
離線安裝目前只支持 linux/amd64 架構, 其他架構請參考在線安裝。
下載最新的JumpServer堡壘機linux/amd64離線包，并上傳到部署服務器的 /opt 目錄。
cd /opt
tar -xf JumpServer-ce-v4.10.2-x86_64.tar.gz
cd JumpServer-ce-v4.10.2-x86_64# 根據需要修改配置文件模板, 如果不清楚用途可以跳過修改
cat config-example.txt# JumpServer configuration file example.
#
# If you don’t understand the purpose, you can skip modifying this configuration file, the system will automatically fill in
# Complete parameter documentation https://docs.JumpServer.org/zh/v3/guide/env/################################# Image Configuration #################################
#
# The connection to docker.io in China will timeout or the download speed will be slow, enable this option to use Huawei Cloud image acceleration
# Replace the old version DOCKER_IMAGE_PREFIX
#
# DOCKER_IMAGE_MIRROR=1# Image pull policy Always, IfNotPresent
# Always means that the latest image will be pulled every time, IfNotPresent means that the image will be pulled only if it does not exist locally
#
# IMAGE_PULL_POLICY=Always############################## Installation Configuration #############################
#
# JumpServer database persistence directory, by default, recordings, task logs are in this directory
# Please modify according to the actual situation, the database file (.sql) and configuration file backed up during the upgrade will also be saved to this directory
#
VOLUME_DIR=/data/JumpServer# Encryption key, please ensure that SECRET_KEY is consistent with the old environment when migrating, do not use special strings
# (*) Warning: Keep this value secret.
# (*) Do not disclose SECRET_KEY to anyone
#
SECRET_KEY=# The token used by the component to register with core, please keep BOOTSTRAP_TOKEN consistent with the old environment when migrating,
# Do not use special strings
# (*) Warning: Keep this value secret.
# (*) Do not disclose BOOTSTRAP_TOKEN to anyone
#
BOOTSTRAP_TOKEN=# Log level INFO, WARN, ERROR
#
LOG_LEVEL=ERROR# The network segment used by the JumpServer container, please do not conflict with the existing network, modify according to the actual situation
#
DOCKER_SUBNET=192.168.250.0/24# ipv6 nat, no need to enable under normal circumstances
# If the host does not support ipv6, enabling this option will prevent the real client ip address from being obtained
#
USE_IPV6=0
DOCKER_SUBNET_IPV6=fc00:1010:1111:200::/64################################# DB Configuration ####################################
# For external databases, you need to enter the correct database information, the system will automatically handle the built-in database
# (*) The password part must not contain single quotes and double quotes
#
DB_ENGINE=postgresql
DB_HOST=postgresql
DB_PORT=5432
DB_USER=postgres
DB_PASSWORD=
DB_NAME=JumpServer# If external MySQL needs to enable TLS/SSL connection, refer to https://docs.JumpServer.org/zh/v3/installation/security_setup/mysql_ssl/
#
# DB_USE_SSL=true################################# Redis Configuration #################################
# For external Redis, please enter the correct Redis information, the system will automatically handle the built-in Redis
# (*) The password part must not contain single quotes and double quotes
#
REDIS_HOST=redis
REDIS_PORT=6379
REDIS_PASSWORD=# If you are using external Redis Sentinel, please manually fill in the following content
#
# REDIS_SENTINEL_HOSTS=mymaster/192.168.100.1:26379,192.168.100.1:26380,192.168.100.1:26381
# REDIS_SENTINEL_PASSWORD=your_sentinel_password
# REDIS_PASSWORD=your_redis_password
# REDIS_SENTINEL_SOCKET_TIMEOUT=5# If external Redis needs to enable TLS/SSL connection, refer to https://docs.JumpServer.org/zh/v3/installation/security_setup/redis_ssl/
#
# REDIS_USE_SSL=true################################# Access Configuration ################################
# The service port provided to the outside, if it conflicts with the existing service, please modify it yourself
#
HTTP_PORT=80################################# HTTPS Configuration #################################
# Refer to https://docs.JumpServer.org/zh/v3/installation/proxy/ for configuration
#
# HTTPS_PORT=443
# SERVER_NAME=your_domain_name
# SSL_CERTIFICATE=your_cert
# SSL_CERTIFICATE_KEY=your_cert_key
## Nginx file upload and download size limit
#
CLIENT_MAX_BODY_SIZE=4096m################################# Component Configuration #############################
# Component registration use, by default, register to the core container, the cluster environment needs to be modified to the cluster vip address
#
CORE_HOST=http://core:8080
PERIOD_TASK_ENABLED=true# Core Session definition,
# SESSION_COOKIE_AGE indicates how many seconds the session expires after idling,
# SESSION_EXPIRE_AT_BROWSER_CLOSE=true means that the session expires as soon as the browser is closed
#
# SESSION_COOKIE_AGE=86400
SESSION_EXPIRE_AT_BROWSER_CLOSE=false# Trusted DOMAINS definition,
# Define the trusted access IP, please modify according to the actual situation, if it is a public IP, please change to the corresponding public IP,
# DOMAINS=”demo.JumpServer.org:443″
# DOMAINS=”172.17.200.191:80″
# DOMAINS=”demo.JumpServer.org:443,172.17.200.191:80″
DOMAINS=# Configure the components that do not need to be started, by default all components will be started, if you do not need a certain component, you can set {component name}_ENABLED to 0 to turn it off
# CORE_ENABLED=0
# CELERY_ENABLED=0
# KOKO_ENABLED=0
# LION_ENABLED=0
# CHEN_ENABLED=0
# WEB_ENABLED=0# Lion enables font smoothing to optimize the experience
#
JumpServer_ENABLE_FONT_SMOOTHING=true################################# XPack Configuration #################################
# XPack package, invalid setting in open source version
#
SSH_PORT=2222
RDP_PORT=3389
XRDP_PORT=3390
MAGNUS_MYSQL_PORT=33061
MAGNUS_MARIADB_PORT=33062
MAGNUS_REDIS_PORT=63790
MAGNUS_POSTGRESQL_PORT=54320
MAGNUS_SQLSERVER_PORT=14330
MAGNUS_ORACLE_PORTS=30000-30030################################## Other Configuration ################################
# The terminal uses the host HOSTNAME as the identifier, automatically generated during the first installation
#
SERVER_HOSTNAME=${HOSTNAME}# Use built-in SLB, if the client IP address obtained by the Web page is not correct, please set USE_LB to 0
# When USE_LB is set to 1, use the configuration proxy_set_header X-Forwarded-For $remote_addr
# When USE_LB is set to 0, use the configuration proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for
USE_LB=1# The current running version number of JumpServer, automatically generated after installation and upgrade
#
TZ=Asia/Shanghai
CURRENT_VERSION=# 安裝
./jmsctl.sh install# 啟動
./jmsctl.sh start
安裝完成后 JumpServer 配置文件路徑為： /opt/JumpServer/config/config.txt
cd JumpServer-ce-v4.10.2-x86_64
# 啟動
./jmsctl.sh start# 停止
./jmsctl.sh down# 卸載
./jmsctl.sh uninstall# 幫助
./jmsctl.sh -h
安裝成功后，通過瀏覽器訪問登錄JumpServer堡壘機：
地址: http://<JumpServer服務器IP地址>:<服務運行端口>
用戶名: admin
密碼: ChangeMe
3、在線安裝JumpServer堡壘機
以中國大陸地區為例演示：
cd /opt
wget https://resource.fit2cloud.com/jumpserver/installer/releases/download/v4.10.2/jumpserver-installer-v4.10.2.tar.gz
tar -xf jumpserver-installer-v4.10.2.tar.gz
cd jumpserver-installer-v4.10.2# 根據需要修改配置文件模板, 如果不清楚用途可以跳過修改
cat config-example.txt# JumpServer configuration file example.
#
# If you don’t understand the purpose, you can skip modifying this configuration file, the system will automatically fill in
# Complete parameter documentation https://docs.jumpserver.org/zh/v3/guide/env/################################# Image Configuration #################################
#
# The connection to docker.io in China will timeout or the download speed will be slow, enable this option to use Huawei Cloud image acceleration
# Replace the old version DOCKER_IMAGE_PREFIX
#
# DOCKER_IMAGE_MIRROR=1# Image pull policy Always, IfNotPresent
# Always means that the latest image will be pulled every time, IfNotPresent means that the image will be pulled only if it does not exist locally
#
# IMAGE_PULL_POLICY=Always############################## Installation Configuration #############################
#
# JumpServer database persistence directory, by default, recordings, task logs are in this directory
# Please modify according to the actual situation, the database file (.sql) and configuration file backed up during the upgrade will also be saved to this directory
#
VOLUME_DIR=/data/jumpserver# Encryption key, please ensure that SECRET_KEY is consistent with the old environment when migrating, do not use special strings
# (*) Warning: Keep this value secret.
# (*) Do not disclose SECRET_KEY to anyone
#
SECRET_KEY=# The token used by the component to register with core, please keep BOOTSTRAP_TOKEN consistent with the old environment when migrating,
# Do not use special strings
# (*) Warning: Keep this value secret.
# (*) Do not disclose BOOTSTRAP_TOKEN to anyone
#
BOOTSTRAP_TOKEN=# Log level INFO, WARN, ERROR
#
LOG_LEVEL=ERROR# The network segment used by the JumpServer container, please do not conflict with the existing network, modify according to the actual situation
#
DOCKER_SUBNET=192.168.250.0/24# ipv6 nat, no need to enable under normal circumstances
# If the host does not support ipv6, enabling this option will prevent the real client ip address from being obtained
#
USE_IPV6=0
DOCKER_SUBNET_IPV6=fc00:1010:1111:200::/64################################# DB Configuration ####################################
# For external databases, you need to enter the correct database information, the system will automatically handle the built-in database
# (*) The password part must not contain single quotes and double quotes
#
DB_ENGINE=postgresql
DB_HOST=postgresql
DB_PORT=5432
DB_USER=postgres
DB_PASSWORD=
DB_NAME=jumpserver# If external MySQL needs to enable TLS/SSL connection, refer to https://docs.jumpserver.org/zh/v3/installation/security_setup/mysql_ssl/
#
# DB_USE_SSL=true################################# Redis Configuration #################################
# For external Redis, please enter the correct Redis information, the system will automatically handle the built-in Redis
# (*) The password part must not contain single quotes and double quotes
#
REDIS_HOST=redis
REDIS_PORT=6379
REDIS_PASSWORD=# If you are using external Redis Sentinel, please manually fill in the following content
#
# REDIS_SENTINEL_HOSTS=mymaster/192.168.100.1:26379,192.168.100.1:26380,192.168.100.1:26381
# REDIS_SENTINEL_PASSWORD=your_sentinel_password
# REDIS_PASSWORD=your_redis_password
# REDIS_SENTINEL_SOCKET_TIMEOUT=5# If external Redis needs to enable TLS/SSL connection, refer to https://docs.jumpserver.org/zh/v3/installation/security_setup/redis_ssl/
#
# REDIS_USE_SSL=true################################# Access Configuration ################################
# The service port provided to the outside, if it conflicts with the existing service, please modify it yourself
#
HTTP_PORT=80################################# HTTPS Configuration #################################
# Refer to https://docs.jumpserver.org/zh/v3/installation/proxy/ for configuration
#
# HTTPS_PORT=443
# SERVER_NAME=your_domain_name
# SSL_CERTIFICATE=your_cert
# SSL_CERTIFICATE_KEY=your_cert_key
## Nginx file upload and download size limit
#
CLIENT_MAX_BODY_SIZE=4096m################################# Component Configuration #############################
# Component registration use, by default, register to the core container, the cluster environment needs to be modified to the cluster vip address
#
CORE_HOST=http://core:8080
PERIOD_TASK_ENABLED=true# Core Session definition,
# SESSION_COOKIE_AGE indicates how many seconds the session expires after idling,
# SESSION_EXPIRE_AT_BROWSER_CLOSE=true means that the session expires as soon as the browser is closed
#
# SESSION_COOKIE_AGE=86400
SESSION_EXPIRE_AT_BROWSER_CLOSE=false# Trusted DOMAINS definition,
# Define the trusted access IP, please modify according to the actual situation, if it is a public IP, please change to the corresponding public IP,
# DOMAINS=”demo.jumpserver.org:443″
# DOMAINS=”172.17.200.191:80″
# DOMAINS=”demo.jumpserver.org:443,172.17.200.191:80″
DOMAINS=# Configure the components that do not need to be started, by default all components will be started, if you do not need a certain component, you can set {component name}_ENABLED to 0 to turn it off
# CORE_ENABLED=0
# CELERY_ENABLED=0
# KOKO_ENABLED=0
# LION_ENABLED=0
# CHEN_ENABLED=0
# WEB_ENABLED=0# Lion enables font smoothing to optimize the experience
#
JUMPSERVER_ENABLE_FONT_SMOOTHING=true################################# XPack Configuration #################################
# XPack package, invalid setting in open source version
#
SSH_PORT=2222
RDP_PORT=3389
XRDP_PORT=3390
MAGNUS_MYSQL_PORT=33061
MAGNUS_MARIADB_PORT=33062
MAGNUS_REDIS_PORT=63790
MAGNUS_POSTGRESQL_PORT=54320
MAGNUS_SQLSERVER_PORT=14330
MAGNUS_ORACLE_PORTS=30000-30030################################## Other Configuration ################################
# The terminal uses the host HOSTNAME as the identifier, automatically generated during the first installation
#
SERVER_HOSTNAME=${HOSTNAME}# Use built-in SLB, if the client IP address obtained by the Web page is not correct, please set USE_LB to 0
# When USE_LB is set to 1, use the configuration proxy_set_header X-Forwarded-For $remote_addr
# When USE_LB is set to 0, use the configuration proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for
USE_LB=1# The current running version number of JumpServer, automatically generated after installation and upgrade
#
TZ=Asia/Shanghai
CURRENT_VERSION=# 安裝
./jmsctl.sh install# 啟動
./jmsctl.sh start
安裝完成后 JumpServer 配置文件路徑為： /opt/jumpserver/config/config.txt
cd /opt/jumpserver-installer-v4.10.2
# 啟動
./jmsctl.sh start# 停止
./jmsctl.sh down# 卸載
./jmsctl.sh uninstall# 幫助
./jmsctl.sh -h
安裝成功后，通過瀏覽器訪問登錄JumpServer：
地址: http://<JumpServer服務器IP地址>:<服務運行端口>
用戶名: admin
密碼: ChangeMe
相關閱讀：《Next Terminal堡壘機快速入門（簡介+安裝+使用）》
-
廣告合作
-
QQ群號：4114653
