如果不想再為管理底層Kubernetes基礎架構而費神,可以選擇通過在Amazon EKS Auto Mode托管DeepSeek,以獲得更高的靈活性和可擴展性。本文主要詳細介紹如何使用Amazon EKS托管DeepSeek-R1模型。
一、Amazon EKS介紹
Amazon EKS是高度可用、可擴展且安全的Kubernetes服務,主要用于在亞馬遜云科技(AWS)上使用Kubernetes輕松部署、管理和擴展容器化應用程序。Amazon EKS跨多個亞馬遜云科技可用區運行Kubernetes管理基礎設施,并自動檢測和替換運行狀況不佳的控制平面節點,同時提供按需升級和修補。只需預置工作節點并將其連接到提供的Amazon EKS終端節點。
亞馬遜云科技官網:點擊創建免費賬戶
本文將使用DeepSeek-R1-Distill-Llama-8B蒸餾模型,與擁有671B參數的完整DeepSeek-R1模型相比,對資源的需求更少,雖然功能相對較弱,但提供了一個更輕量級的選擇。如果希望部署完整的DeepSeek-R1模型,請?jiān)趘LLM配置中替換掉蒸餾模型。
二、安裝PreReqs
為簡化設置流程,本文將使用Amazon CloudShell。
# Installing kubectl curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl" sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl # Install Terraform sudo yum install -y yum-utils sudo yum-config-manager --add-repo https://rpm.releases.hashicorp.com/AmazonLinux/hashicorp.repo sudo yum -y install terraform
三、使用Terraform創建啟用Auto Mode的Amazon EKS集群
使用Terraform輕松配置基礎架構,包括Amazon VPC、Amazon ECR存儲庫以及啟用Auto Mode的Amazon EKS集群。
# Clone the GitHub repo with the manifests git clone -b v0.1 https://github.com/aws-samples/deepseek-using-vllm-on-eks cd deepseek-using-vllm-on-eks # Apply the Terraform configuration terraform init terraform apply -auto-approve # After Terraform finishes, configure kubectl with the new EKS cluster $(terraform output configure_kubectl | jq -r)
四、創建Amazon EKS Auto Mode NodePool
創建一個自定義NodePool,用來支持GPU。
# Create a custom NodePool with GPU support kubectl apply -f manifests/gpu-nodepool.yaml # Check if the NodePool is in 'Ready' state kubectl get nodepool/gpu-nodepool
五、部署DeepSeek模型
為簡化使用vLLM部署DeepSeek-R1-Distill-Llama-8B模型的過程,本演示提供了一個sed命令,可以設置模型名稱和參數。
# Use the sed command to replace the placeholder with the model name and configuration parameters sed -i "s|__MODEL_NAME_AND_PARAMETERS__|deepseek-ai/DeepSeek-R1-Distill-Llama-8B --max_model 2048|g" manifests/deepseek-deployment-gpu.yaml # Deploy the DeepSeek model on Kubernetes kubectl apply -f manifests/deepseek-deployment-gpu.yaml # Check the pods in the 'deepseek' namespace kubectl get po -n deepseek
起初,在Amazon EKS Auto Mode為底層EC2實例配置所需的GPU驅動程序時,pod可能會處于Pending(待處理)狀態。
如果pod在Pending(待處理)狀態停留了幾分鐘,請確認亞馬遜云科技賬戶有足夠的服務配額來啟動所需的實例,需要檢查G或P實例的配額限制情況。
注意:這些配額基于vCPU,而非實例數量,因此請務必按要求申請配額。
# Wait for the pod to reach the 'Running' state watch -n 1 kubectl get po -n deepseek # Verify that a new Node has been created kubectl get nodes -l owner=data-engineer # Check the logs to confirm that vLLM has started kubectl logs deployment.apps/deepseek-deployment -n deepseek
部署準備就緒后,日志條目將顯示“應用程序啟動完成”。
六、與DeepSeek LLM交互
接下來,創建一個本地代理,使用curl請求與模型進行交互。
# Set up a proxy to forward the service port to your local terminal kubectl port-forward svc/deepseek-svc -n deepseek 8080:80 > port-forward.log 2>&1 & # Send a curl request to the model curl -X POST "http://localhost:8080/v1/chat/completions" -H "Content-Type: application/json" --data '{ "model": "deepseek-ai/DeepSeek-R1-Distill-Llama-8B", "messages": [ { "role": "user", "content": "What is Kubernetes?" } ] }'
根據模型輸出的復雜程度,響應可能需要幾秒鐘時間,可以通過deepseek-deployment日志監控進度。
七、為模型構建聊天機器人UI界面
直接使用API請求可以正常工作,但也可以構建一個更友好的聊天機器人UI界面來與模型交互,該界面的源代碼已在GitHub中提供。
# Retrieve the ECR repository URI created by Terraform export ECR_REPO=$(terraform output ecr_repository_uri | jq -r) # Build the container image for the Chatbot UI docker build -t $ECR_REPO:0.1 chatbot-ui/application/. # Login to ECR and push the image aws ecr get-login-password | docker login --username AWS --password-stdin $ECR_REPO docker push $ECR_REPO:0.1 # Update the deployment manifest to use the image sed -i "s#__IMAGE_DEEPSEEK_CHATBOT__#$ECR_REPO:0.1#g" chatbot-ui/manifests/deployment.yaml # Generate a random password for the Chatbot UI login sed -i "s|__PASSWORD__|$(openssl rand -base64 12 | tr -dc A-Za-z0-9 | head -c 16)|" chatbot-ui/manifests/deployment.yaml # Deploy the UI and create the ingress class required for load balancers kubectl apply -f chatbot-ui/manifests/ingress-class.yaml kubectl apply -f chatbot-ui/manifests/deployment.yaml # Get the URL for the load balancer to access the application echo http://$(kubectl get ingress/deepseek-chatbot-ingress -n deepseek -o json | jq -r '.status.loadBalancer.ingress[0].hostname')
等待幾秒鐘,以便負載均衡器完成配置。
要訪問聊天機器人UI界面,需要使用存儲在Kubernetes密鑰中的用戶名和密碼。
echo -e "Username=$(kubectl get secret deepseek-chatbot-secrets -n deepseek -o jsonpath='{.data.admin-username}' | base64 --decode)\nPassword=$(kubectl get secret deepseek-chatbot-secrets -n deepseek -o jsonpath='{.data.admin-password}' | base64 --decode)"

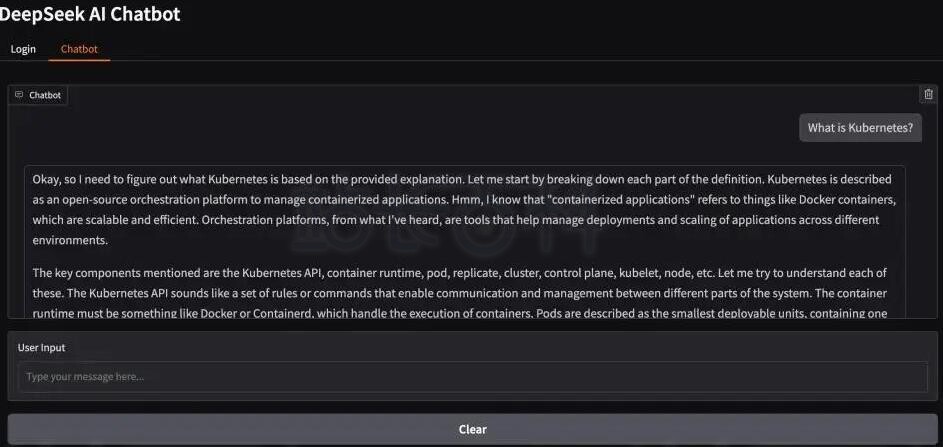

登錄后,界面將顯示一個新的“聊天機器人”選項卡,可以在其中與模型進行交互。
按照上述步驟,可以在Amazon EKS上高效部署DeepSeek-R1模型,并利用Amazon EKS靈活的擴展選項和精細的資源控制,在保持高性能的同時優化成本。該解決方案利用了Kubernetes的原生功能和Amazon EKS Auto Mode等特性,提供了一個高度可配置的部署方案,可以精確滿足運營需求和預算范圍。
相關推薦:《亞馬遜云科技Amazon EC2部署DeepSeek-R1蒸餾模型教程》
-
